Radial Oscillations of (n_c, n_e) = (5, 1) Models

Part I:   The Search	Part II:  Review of MF85b	III:  (5,1) Radial Oscillations	IV:  Reconciliation
These four chapters, labeled Parts I - IV, are segments of the much longer chapter titled, SSC/Stability/BiPolytropes/PlannedApproach. An accompanying organizational index has helped us write this chapter succinctly.

Foundation

In an accompanying discussion, we derived the so-called,

Adiabatic Wave (or Radial Pulsation) Equation

$\frac{d^{2}x}{d{r}_0^2}+[\frac{4}{r_0}-(\frac{g_0{\rho }_0}{P_0}\left)\right]\frac{dx}{d{r}_0}+\left(\frac{{\rho }_0}{{\gamma }_{\mathrm{g}}{P}_0}\right)[{\omega }^2+(4-3{\gamma }_{\mathrm{g}})\frac{g_0}{r_0}]x=0$

whose solution gives eigenfunctions that describe various radial modes of oscillation in spherically symmetric, self-gravitating fluid configurations. Assuming that the underlying equilibrium structure is that of a bipolytrope having $(n_c,n_e)=(5,1)$, it makes sense to adopt the normalizations used when defining the equilibrium structure, namely,

${\rho }^{*}$	$\equiv$	$\frac{{\rho }_0}{{\rho }_c}$	;	$r^{*}$	$\equiv$	$\frac{r_0}{[K_c^{1/2}/(G^{1/2}{\rho }_c^{2/5})]}$
$P^{*}$	$\equiv$	$\frac{P_0}{K_c{\rho }_c^{6/5}}$	;	$M_r^{*}$	$\equiv$	$\frac{M_r}{[K_c^{3/2}/(G^{3/2}{\rho }_c^{1/5})]}$

We note as well that,

$g_0$	$=$	$\frac{GM(r_0)}{r_0^2}$
	$=$	$G\left[M_r^{*}{\rho }_c^{-1/5}\right(\frac{K_c}{G}{)}^{3/2}\left]\right[r^{*}{\rho }_c^{-2/5}(\frac{K_c}{G}{)}^{1/2}{]}^{-2}$
	$=$	$\frac{G{M}_r^{*}}{(r^{*}{)}^2}\left[{\rho }_c^{3/5}\right(\frac{K_c}{G}{)}^{1/2}].$

Hence, multiplying the LAWE through by $(K_c/G){\rho }_c^{-4/5}$ gives,

$0$	$=$	$\frac{d^{2}x}{dr{*}^2}+[\frac{4}{r^{*}}-{\rho }_c^{-2/5}(\frac{K_c}{G}{)}^{1/2}\left(\frac{g_0{\rho }_0}{P_0}\right)]\frac{dx}{dr*}+{\rho }_c^{-4/5}(\frac{K_c}{G}\left)\right(\frac{{\rho }_0}{{\gamma }_{\mathrm{g}}{P}_0}\left)\right[{\omega }^2+(4-3{\gamma }_{\mathrm{g}})\frac{g_0}{r_0}]x$
	$=$	$\frac{d^{2}x}{dr{*}^2}+\{\frac{4}{r^{*}}-{\rho }_c^{-2/5}(\frac{K_c}{G}{)}^{1/2}\frac{G{M}_r^{*}}{(r^{*}{)}^2}\left[{\rho }_c^{3/5}\right(\frac{K_c}{G}{)}^{1/2}\left]\right[\frac{{\rho }_c{\rho }^{*}}{P^{*}{K}_c{\rho }_c^{6/5}}\left]\right\}\frac{dx}{dr*}+{\rho }_c^{-4/5}\left(\frac{K_c}{G}\right)\left[\frac{{\rho }_c{\rho }^{*}}{{\gamma }_{\mathrm{g}}{P}^{*}{K}_c{\rho }_c^{6/5}}\right]\{{\omega }^2+(4-3{\gamma }_{\mathrm{g}})\frac{G{M}_r^{*}}{(r^{*}{)}^2}[{\rho }_c^{3/5}\left(\frac{K_c}{G}{)}^{1/2}\right]\frac{{\rho }_c^{2/5}}{r^{*}}\left(\frac{G}{K_c}{)}^{1/2}\right\}x$
	$=$	$\frac{d^{2}x}{dr{*}^2}+\{\frac{4}{r^{*}}-\frac{M_r^{*}}{(r^{*}{)}^2}[\frac{{\rho }^{*}}{P^{*}}\left]\right\}\frac{dx}{dr*}+\left(\frac{1}{G{\rho }_c}\right)\left[\frac{{\rho }^{*}}{{\gamma }_{\mathrm{g}}{P}^{*}}\right]\{{\omega }^2+(4-3{\gamma }_{\mathrm{g}})\frac{G{\rho }_c{M}_r^{*}}{(r^{*}{)}^3}\}x$
	$=$	$\frac{d^{2}x}{dr{*}^2}+\{\frac{4}{r^{*}}-(\frac{{\rho }^{*}}{P^{*}}\left)\frac{M_r^{*}}{(r^{*}{)}^2}\right\}\frac{dx}{dr*}+\left(\frac{{\rho }^{*}}{P^{*}}\right)\{\frac{{\omega }^2}{{\gamma }_{\mathrm{g}}G{\rho }_c}+(\frac{4}{{\gamma }_{\mathrm{g}}}-3\left)\frac{M_r^{*}}{(r^{*}{)}^3}\right\}x$
	$=$	$\frac{d^{2}x}{dr{*}^2}+\{4-(\frac{{\rho }^{*}}{P^{*}}\left)\frac{M_r^{*}}{(r^{*})}\right\}\frac{1}{r^{*}}\frac{dx}{dr*}+\left(\frac{{\rho }^{*}}{P^{*}}\right)\{\frac{2\pi {\sigma }_c^2}{3{\gamma }_{\mathrm{g}}}-\frac{{\alpha }_{\mathrm{g}}{M}_r^{*}}{(r^{*}{)}^3}\}x.$

Profile

Now, referencing the derived bipolytropic model profile, we should incorporate the following relations:

Table 1: Radial Profile of Various Physical Variables

Variable	Throughout the Core $0\le \xi \le {\xi }_i$	Throughout the Envelope† ${\eta }_i\le \eta \le {\eta }_s$	Plotted Profiles
			${\xi }_i=0.5$	${\xi }_i=1.0$	${\xi }_i=3.0$
$r^{*}$	$(\frac{3}{2\pi }{)}^{1/2}\xi$	$(\frac{{\mu }_e}{{\mu }_c}{)}^{-1}{\theta }_i^{-2}(2\pi {)}^{-1/2}\eta$
${\rho }^{*}$	$(1+\frac{1}{3}{\xi }^2{)}^{-5/2}$	$\left(\frac{{\mu }_e}{{\mu }_c}\right){\theta }_i^5\varphi (\eta )$
$P^{*}$	$(1+\frac{1}{3}{\xi }^2{)}^{-3}$	${\theta }_i^6[\varphi (\eta ){]}^2$
$M_r^{*}$	$\left(\frac{2\cdot 3}{\pi }{)}^{1/2}\right[{\xi }^3(1+\frac{1}{3}{\xi }^2{)}^{-3/2}]$	$\left(\frac{{\mu }_e}{{\mu }_c}{)}^{-2}{\theta }_i^{-1}\right(\frac{2}{\pi }{)}^{1/2}(-{\eta }^2\frac{d\varphi }{d\eta })$
†In order to obtain the various envelope profiles, it is necessary to evaluate $\varphi (\eta )$ and its first derivative using the information presented in Step 6, above.

Therefore, throughout the core we have,

$\frac{{\rho }^{*}}{P^{*}}$	$=$	$(1+\frac{1}{3}{\xi }^2{)}^{1/2};$
$\frac{M_r^{*}}{r^{*}}$	$=$	$\left(\frac{2\cdot 3}{\pi }{)}^{1/2}\right[{\xi }^3(1+\frac{1}{3}{\xi }^2{)}^{-3/2}](\frac{2\pi }{3}{)}^{1/2}\frac{1}{\xi }=2{\xi }^2(1+\frac{1}{3}{\xi }^2{)}^{-3/2};$

and, throughout the envelope we have,

$\frac{{\rho }^{*}}{P^{*}}$	$=$	$\left(\frac{{\mu }_e}{{\mu }_c}\right){\theta }_i^{-1}\varphi (\eta {)}^{-1};$
$\frac{M_r^{*}}{r^{*}}$	$=$	$\left(\frac{{\mu }_e}{{\mu }_c}{)}^{-2}{\theta }_i^{-1}\right(\frac{2}{\pi }{)}^{1/2}(-{\eta }^2\frac{d\varphi }{d\eta })\left[\right(\frac{{\mu }_e}{{\mu }_c}{)}^{-1}{\theta }_i^{-2}(2\pi {)}^{-1/2}\eta {]}^{-1}=2(\frac{{\mu }_e}{{\mu }_c}{)}^{-1}\frac{{\theta }_i}{\eta }(-{\eta }^2\frac{d\varphi }{d\eta }).$

NOTE on 15 May 2019:  Prior to this date the last RHS expression had an incorrect exponent on $\eta$. It previously (incorrectly) read, $\frac{M_r^{*}}{r^{*}}$ $=$ $2\left(\frac{{\mu }_e}{{\mu }_c}{)}^{-1}{\theta }_i\eta \right(-{\eta }^2\frac{d\varphi }{d\eta }).$

Numerical Integration

General Approach

Here, we begin by recognizing that the 2^nd-order ODE that must be integrated to obtain the desired eigenvectors has the generic form,

$0$

$=$

$x^{″}+\frac{{\mathscr{H}}}{r^{*}}{x}^{\prime }+{𝒦}x,$

where,

$x^{\prime }$

$=$

$\frac{dx}{d{r}^{*}}$

and

$x^{″}$

$=$

$\frac{d^{2}x}{d(r^{*}{)}^2}.$

Adopting the same approach as before when we integrated the LAWE for pressure-truncated polytropes, we will enlist the finite-difference approximations,

$x^{\prime }$

$\approx$

$\frac{x_{+}-x_{-}}{2\delta r^{*}}$

and

$x^{″}$

$\approx$

$\frac{x_{+}-2x_j+x_{-}}{(\delta r^{*}{)}^2}.$

The finite-difference representation of the LAWE is, therefore,

$\frac{x_{+}-2x_j+x_{-}}{(\delta r^{*}{)}^2}$	$=$	$-\frac{{\mathscr{H}}}{r^{*}}\left[\frac{x_{+}-x_{-}}{2\delta r^{*}}\right]-{𝒦}{x}_j$
$\Rightarrow x_{+}-2x_j+x_{-}$	$=$	$-\frac{\delta r^{*}}{2r^{*}}[x_{+}-x_{-}]{\mathscr{H}}-(\delta r^{*}{)}^2{𝒦}{x}_j$
$\Rightarrow x_{j+1}[1+(\frac{\delta r^{*}}{2r^{*}}\left){\mathscr{H}}\right]$	$=$	$[2-(\delta r^{*}{)}^2{𝒦}]x_j-[1-\left(\frac{\delta r^{*}}{2r^{*}}\right){\mathscr{H}}]x_{j-1}.$

In what follows we will also find it useful to rewrite ${𝒦}$ in the form,

${𝒦}\to \left(\frac{{\sigma }_c^2}{{\gamma }_{\mathrm{g}}}\right){{𝒦}}_1-{\alpha }_{\mathrm{g}}{{𝒦}}_2.$

The relevant coefficient expressions for all regions of the configuration are,

${\mathscr{H}}$

$\equiv$

$\{4-(\frac{{\rho }^{*}}{P^{*}}\left)\frac{M_r^{*}}{(r^{*})}\right\}$

,

${{𝒦}}_1$

$\equiv$

$\frac{2\pi }{3}\left(\frac{{\rho }^{*}}{P^{*}}\right)$

and

${{𝒦}}_2$

$\equiv$

$\left(\frac{{\rho }^{*}}{P^{*}}\right)\frac{M_r^{*}}{(r^{*}{)}^3}.$

Special Handling at the Center

In order to kick-start the integration, we set the displacement function value to $x_1=1$ at the center of the configuration $({\xi }_1=0)$, then draw on the derived power-series expression to determine the value of the displacement function at the first radial grid line, ${\xi }_2=\delta \xi$, away from the center. Specifically, we set,

$x_2$

$=$

$x_1[1-\frac{(n+1)\mathfrak{𝔉}(\delta \xi {)}^2}{60}{]}_{n=5}=x_1[1-\frac{\mathfrak{𝔉}(\delta \xi {)}^2}{10}].$

Special Handling at the Interface

Integrating outward from the center, the general approach will work up through the determination of $x_{j+1}$ when "j+1" refers to the interface location. In order to properly transition from the core to the envelope, we need to determine the value of the slope at this interface location. Let's do this by setting j = i, then projecting forward to what $x_{+}$ would be — that is, to what the amplitude just beyond the interface would be — if the core were to be extended one more zone. Then, the slope at the interface (as viewed from the perspective of the core) will be,

$x{\text{'}}_i{|}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$	$\approx$	$\frac{1}{2\delta r^{*}}\{x_{+}-x_{i-1}\}$
	$=$	$-\frac{x_{i-1}}{2\delta r^{*}}+\frac{1}{2\delta r^{*}}\left\{\right[2-(\delta r^{*}{)}^2{𝒦}]x_i-[1-(\frac{\delta r^{*}}{2r^{*}}\left){\mathscr{H}}\right]x_{i-1}\left\}\right[1+\left(\frac{\delta r^{*}}{2r^{*}}\right){\mathscr{H}}{]}^{-1}$
	$=$	$\frac{1}{2\delta r^{*}}\left\{\right[2-(\delta r^{*}{)}^2{𝒦}]x_i-[1-(\frac{\delta r^{*}}{2r^{*}}\left){\mathscr{H}}\right]x_{i-1}-[1+(\frac{\delta r^{*}}{2r^{*}}\left){\mathscr{H}}\right]x_{i-1}\left\}\right[1+\left(\frac{\delta r^{*}}{2r^{*}}\right){\mathscr{H}}{]}^{-1}$
	$=$	$\frac{1}{2\delta r^{*}}\left\{\right[2-(\delta r^{*}{)}^2{𝒦}]x_i-2x_{i-1}\left\}\right[1+\left(\frac{\delta r^{*}}{2r^{*}}\right){\mathscr{H}}{]}^{-1}$

Conversely, as viewed from the envelope, if we assume that we know $x_i$ and $x{\text{'}}_i$, we can determine the amplitude, $x_{i+1}$, at the first zone beyond the interface as follows:

$x_{-}$	$\approx$	$x_{i+1}-2\delta r^{*}\cdot x{\text{'}}_i{|}_{\mathrm{e}\mathrm{n}\mathrm{v}}$
$\Rightarrow x_{i+1}[1+(\frac{\delta r^{*}}{2r^{*}}\left){\mathscr{H}}\right]$	$=$	$[2-(\delta r^{*}{)}^2{𝒦}]x_i-[1-\left(\frac{\delta r^{*}}{2r^{*}}\right){\mathscr{H}}\left]\right[x_{i+1}-2\delta r^{*}\cdot x{\text{'}}_i{|}_{\mathrm{e}\mathrm{n}\mathrm{v}}]$
$\Rightarrow x_{i+1}[1+(\frac{\delta r^{*}}{2r^{*}}\left){\mathscr{H}}\right]+[1-(\frac{\delta r^{*}}{2r^{*}}\left){\mathscr{H}}\right]x_{i+1}$	$=$	$[2-(\delta r^{*}{)}^2{𝒦}]x_i+[1-\left(\frac{\delta r^{*}}{2r^{*}}\right){\mathscr{H}}]2\delta r^{*}\cdot x{\text{'}}_i{|}_{\mathrm{e}\mathrm{n}\mathrm{v}}$
$\Rightarrow x_{i+1}$	$=$	$[1-\frac{1}{2}(\delta r^{*}{)}^2{𝒦}]x_i+[1-\left(\frac{\delta r^{*}}{2r^{*}}\right){\mathscr{H}}]\delta r^{*}\cdot x{\text{'}}_i{|}_{\mathrm{e}\mathrm{n}\mathrm{v}}$

Splitting Analysis Into Separate Core and Envelope Components

Core:

Given that, $\sqrt{2\pi /3}{r}^{*}=\xi$, lets multiply the LAWE through by $3/(2\pi )$. This gives,

$0$

$=$

$\frac{d^{2}x}{d{\xi }^2}+\{4-(\frac{{\rho }^{*}}{P^{*}}\left)\frac{M_r^{*}}{(r^{*})}\right\}\frac{1}{\xi }\cdot \frac{dx}{d\xi }+\frac{3}{2\pi }\left(\frac{{\rho }^{*}}{P^{*}}\right)\{\frac{2\pi {\sigma }_c^2}{3{\gamma }_{\mathrm{g}}}-\frac{{\alpha }_{\mathrm{g}}{M}_r^{*}}{(r^{*}{)}^3}\}x.$

Specifically for the core, therefore, the finite-difference representation of the LAWE is,

$\frac{x_{+}-2x_j+x_{-}}{(\delta \xi {)}^2}$	$=$	$-\frac{{\mathscr{H}}}{\xi }\left[\frac{x_{+}-x_{-}}{2\delta \xi }\right]-\left[\frac{3{𝒦}}{2\pi }\right]x_j$
$\Rightarrow x_{+}-2x_j+x_{-}$	$=$	$-\frac{\delta \xi }{2\xi }[x_{+}-x_{-}]{\mathscr{H}}-(\delta \xi {)}^2[\frac{3{𝒦}}{2\pi }]x_j$
$\Rightarrow x_{j+1}[1+(\frac{\delta \xi }{2\xi }\left){\mathscr{H}}\right]$	$=$	$[2-(\delta \xi {)}^2\left(\frac{3{𝒦}}{2\pi }\right)]x_j-[1-\left(\frac{\delta \xi }{2\xi }\right){\mathscr{H}}]x_{j-1}.$

This also means that, as viewed from the perspective of the core, the slope at the interface is

$[\frac{dx}{d\xi }{]}_{\mathrm{i}\mathrm{n}\mathrm{t}\mathrm{e}\mathrm{r}\mathrm{f}\mathrm{a}\mathrm{c}\mathrm{e}}$

$=$

$\frac{1}{2\delta \xi }\left\{\right[2-(\delta \xi {)}^2(\frac{3{𝒦}}{2\pi }\left)\right]x_i-2x_{i-1}\left\}\right[1+\left(\frac{\delta \xi }{2\xi }\right){\mathscr{H}}{]}^{-1}.$

Envelope:

Given that,

$\left(\frac{{\mu }_e}{{\mu }_c}\right){\theta }_i^2(2\pi {)}^{1/2}{r}^{*}=\eta ,$

let's multiply the LAWE through by $(2\pi {)}^{-1}{\theta }_i^{-4}({\mu }_e/{\mu }_c{)}^{-2}$. This gives,

$0$

$=$

$\frac{d^{2}x}{d{\eta }^2}+\{4-(\frac{{\rho }^{*}}{P^{*}}\left)\frac{M_r^{*}}{(r^{*})}\right\}\frac{1}{\eta }\cdot \frac{dx}{d\eta }+\frac{1}{2\pi {\theta }_i^4}\left(\frac{{\mu }_e}{{\mu }_c}{)}^{-2}\right(\frac{{\rho }^{*}}{P^{*}}\left)\right\{\frac{2\pi {\sigma }_c^2}{3{\gamma }_{\mathrm{g}}}-\frac{{\alpha }_{\mathrm{g}}{M}_r^{*}}{(r^{*}{)}^3}\}x.$

Specifically for the envelope, therefore, the finite-difference representation of the LAWE is,

$\frac{x_{+}-2x_j+x_{-}}{(\delta \eta {)}^2}$	$=$	$-\frac{{\mathscr{H}}}{\eta }\left[\frac{x_{+}-x_{-}}{2\delta \eta }\right]-\left(\frac{{\mu }_e}{{\mu }_c}{)}^{-2}\right[\frac{{𝒦}}{2\pi {\theta }_i^4}]x_j$
$\Rightarrow x_{+}-2x_j+x_{-}$	$=$	$-\frac{\delta \eta }{2\eta }[x_{+}-x_{-}]{\mathscr{H}}-(\delta \eta {)}^2(\frac{{\mu }_e}{{\mu }_c}{)}^{-2}\left[\frac{{𝒦}}{2\pi {\theta }_i^4}\right]x_j$
$\Rightarrow x_{j+1}[1+(\frac{\delta \eta }{2\eta }\left){\mathscr{H}}\right]$	$=$	$[2-(\delta \eta {)}^2\left(\frac{{\mu }_e}{{\mu }_c}{)}^{-2}\right(\frac{{𝒦}}{2\pi {\theta }_i^4}\left)\right]x_j-[1-(\frac{\delta \eta }{2\eta }\left){\mathscr{H}}\right]x_{j-1}.$

This also means that, once we know the slope at the interface (see immediately below), the amplitude at the first zone outside of the interface will be given by the expression,

$x_{i+1}$

$=$

$[1-\frac{1}{2}(\delta \eta {)}^2\left(\frac{{\mu }_e}{{\mu }_c}{)}^{-2}\right(\frac{{𝒦}}{2\pi {\theta }_i^4}\left)\right]x_i+[1-(\frac{\delta \eta }{2\eta }\left){\mathscr{H}}\right]\delta \eta \cdot [\frac{dx}{d\eta }{]}_{\mathrm{i}\mathrm{n}\mathrm{t}\mathrm{e}\mathrm{r}\mathrm{f}\mathrm{a}\mathrm{c}\mathrm{e}}.$

Interface

If we consider only cases where ${\gamma }_e={\gamma }_c$, then at the interface we expect,

$\frac{d\ln x}{d\ln r^{*}}$	$=$	$\frac{d\ln x}{d\ln \xi }=\frac{d\ln x}{d\ln \eta }$
$\Rightarrow r^{*}\frac{dx}{d{r}^{*}}$	$=$	$\xi \frac{dx}{d\xi }=\eta \frac{dx}{d\eta }$
$\Rightarrow \frac{dx}{d{r}^{*}}$	$=$	$(\frac{2\pi }{3}{)}^{1/2}\frac{dx}{d\xi }=(\frac{{\mu }_e}{{\mu }_c}){\theta }_i^2(2\pi {)}^{1/2}\frac{dx}{d\eta }.$

Switching at the interface from $\xi$ to $\eta$ therefore means that,

$[\frac{dx}{d\eta }{]}_{\mathrm{i}\mathrm{n}\mathrm{t}\mathrm{e}\mathrm{r}\mathrm{f}\mathrm{a}\mathrm{c}\mathrm{e}}$

$=$

$\frac{1}{\sqrt{3}}\left(\frac{{\mu }_e}{{\mu }_c}{)}^{-1}{\theta }_i^{-2}\right[\frac{dx}{d\xi }{]}_{\mathrm{i}\mathrm{n}\mathrm{t}\mathrm{e}\mathrm{r}\mathrm{f}\mathrm{a}\mathrm{c}\mathrm{e}}.$

If, however, we want to consider values for the adiabatic index that are different in the two regions, we have to follow the above-outlined guidelines, that is,

$\frac{d\ln x}{d\ln \eta }{|}_i$	$=$	$3(\frac{{\gamma }_c}{{\gamma }_e}-1)+\frac{{\gamma }_c}{{\gamma }_e}(\frac{d\ln x}{d\ln \xi }{)}_i$
$\Rightarrow [\frac{dx}{d\eta }{]}_i$	$=$	$\frac{x_i}{{\eta }_i}\left\{3\right(\frac{{\gamma }_c}{{\gamma }_e}-1)+\frac{{\gamma }_c}{{\gamma }_e}\cdot \frac{{\xi }_i}{x_i}[\frac{dx}{d\xi }{]}_i\}$
	$=$	$\frac{3x_i}{{\eta }_i}(\frac{{\gamma }_c}{{\gamma }_e}-1)+\frac{{\gamma }_c}{{\gamma }_e}\cdot \frac{1}{\sqrt{3}}\left(\frac{{\mu }_e}{{\mu }_c}{)}^{-1}{\theta }_i^{-2}\right[\frac{dx}{d\xi }{]}_i.$

Eigenvectors for Marginally Unstable Models with (γ_c, γ_e) = (6/5, 2)

We now have the tools in hand to identify the eigenvectors — that is, various radial eigenfunctions and the corresponding eigenfrequency for each — associated with various modes of oscillation in $(n_c,n_e)=(5,1)$ bipolytropes. Which models should we examine?

In our accompanying review of the bipolytrope stability analysis presented by Murphy & Fiedler (1983b), our primary objective was to show that we were able to match their results quantitatively. We therefore set ${\mu }_e/{\mu }_c$ = 1 — the only $\mu$-ratio that they considered — and picked values of the core-envelope interface radius, ${\xi }_i$, that were listed among their set of chosen models. For a fixed value of ${\xi }_i$, we integrated the relevant LAWE from the center toward the surface for many different eigenfrequency $({\sigma }_c^2)$ guesses until an eigenfunction was found whose behavior at the surface matched with high precision the physically justified surface boundary condition.

With the above virial stability analysis in mind (see especially Figure 3), here we have chosen to focus on models that reside along six of the equilibrium sequences that have already been analytically identified, above — specifically, the sequences for which ${\mu }_e/{\mu }_c$ = 1, ½, 0.345, ⅓, 0.309, and ¼ — and to examine oscillation modes under the assumption that,

${\gamma }_c=\frac{(n_c+1)}{n_c}=\frac{6}{5},$       and       ${\gamma }_e=\frac{(n_e+1)}{n_e}=2.$

Fundamental Modes

We decided to examine, first, whether any model along each sequence marks a transition from dynamically stable to dynamically unstable configurations. We accomplished this by setting ${\sigma }_c^2$ = 0, then integrating the relevant LAWE from the center toward the surface for many different guesses of the core-envelope interface radius until an eigenfunction with no radial nodes — i.e., an eigenfunction associated with the fundamental mode of radial oscillation — was found whose behavior at the surface matched with high precision the physically desired surface boundary condition. We were successful in this endeavor. A marginally unstable model was identified on each of the six separate equilibrium sequences.

Equilibrium Properties of Marginally Unstable Models

Table 2 summarizes some of the equilibrium properties of these six models. For example, the second column of the table gives the value of the core-envelope interface radius, ${\xi }_i$, associated with each marginally unstable model. The table also lists: the value of the model's dimensionless radius, $R_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}}^{*}$, the key structural parameters, $q$ & $\nu$, and the central-to-mean density associated with each model; and in each case the dimensionless thermal energy $(\mathfrak{𝔰})$ and dimensionless gravitational potential energy $(\mathfrak{𝔴})$ associated, separately, with the core and the envelope. Note that, once the pair of parameters, $({\mu }_e/{\mu }_c,{\xi }_i)$, has been specified, we can legitimately assign high-precision values to all of the other model parameters because they are analytically prescribed.

Table 2: Properties of Marginally Unstable Bipolytropes Having $(n_c,n_e)=(5,1)$ and $({\gamma }_c,{\gamma }_e)=(\frac{6}{5},2)$ Determined from Integration of the LAWE
$\frac{{\mu }_e}{{\mu }_c}$	${\xi }_i$	$R_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}}^{*}$	$q\equiv \frac{r_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}}{R_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}}}$	$\nu \equiv \frac{M_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}}{M_{\mathrm{t}\mathrm{o}\mathrm{t}}}$	$\frac{{\rho }_c}{\overline{\rho }}$	${\mathfrak{𝔰}}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$	${\mathfrak{𝔴}}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$	${\mathfrak{𝔰}}_{\mathrm{e}\mathrm{n}\mathrm{v}}$	${\mathfrak{𝔴}}_{\mathrm{e}\mathrm{n}\mathrm{v}}$
1	1.6686460157	2.139737	0.53885819	0.497747626	8.51704656	3.021916335	-3.356583022	1.47780476	-5.642859167
$\frac{1}{2}$	2.27925811317	5.146499	0.306021732	0.401776274	63.29514949	4.241287117	-6.074241035	4.284931508	-10.97819621
0.345	2.560146865247	9.554041	0.185160563	0.234302525	209.7739052	4.639705843	-7.125754184	11.72861751	-25.61089252
$\frac{1}{3}$	2.582007485476	10.120558	0.176288391	0.218241608	230.4125398	4.667042505	-7.200966267	13.15887139	-28.45086152
0.309	2.6274239687695	11.464303	0.158362807	0.184796947	279.0788798	4.722277318	-7.354156963	17.1374434	-36.36528446
$\frac{1}{4}$	2.7357711469398	15.895632	0.118924863	0.11071211	430.0444648	4.84592201	-7.70305421	37.84289623	-77.67458196

As was expected from our above discussion of virial equilibrium conditions, we found that to high precision for each of these equilibrium models,

$({\mathfrak{𝔴}}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}+{\mathfrak{𝔴}}_{\mathrm{e}\mathrm{n}\mathrm{v}})+2({\mathfrak{𝔰}}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}+{\mathfrak{𝔰}}_{\mathrm{e}\mathrm{n}\mathrm{v}})$

$=$

$0.$

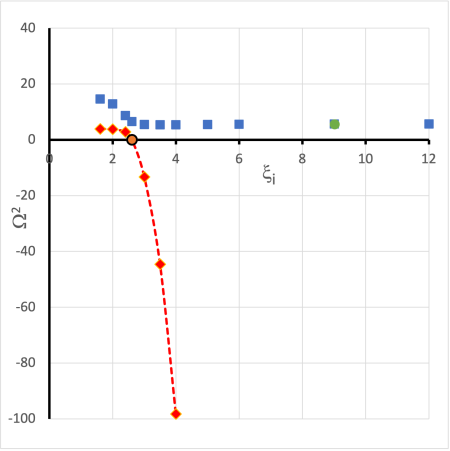

However, contrary to expectations, in no case did we find that ${\mathfrak{𝔰}}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}/{\mathfrak{𝔰}}_{\mathrm{e}\mathrm{n}\mathrm{v}}=5$. That is to say, we found that none of the models lies on the (red-dashed) curve in the $q-\nu$ parameter space that separates stable from unstable models as defined by our above free-energy-based stability analysis. The left-hand panel of Figure 4 shows this (red-dashed) demarcation curve; for all intents and purposes, it is a reproduction of the right-hand panel of Figure 3, above — turning-point markers have been removed to minimize clutter, the equilibrium sequences have been labeled, and the horizontal axis has been extended to unity in order to include a longer portion of the ${\mu }_e/{\mu }_c=1$ sequence. The orange triangular markers that appear in the right-hand panel of Figure 4 pinpoint where each of the Table 2 "marginally unstable" models resides in this $q-\nu$ plane. Clearly, all six of the orange triangles lie well off of — and to the stable side of — the red-dashed demarcation curve. This discrepancy, which has resulted from our use of two separate approaches to stability analysis, will be discussed further and gratifyingly resolved, below.

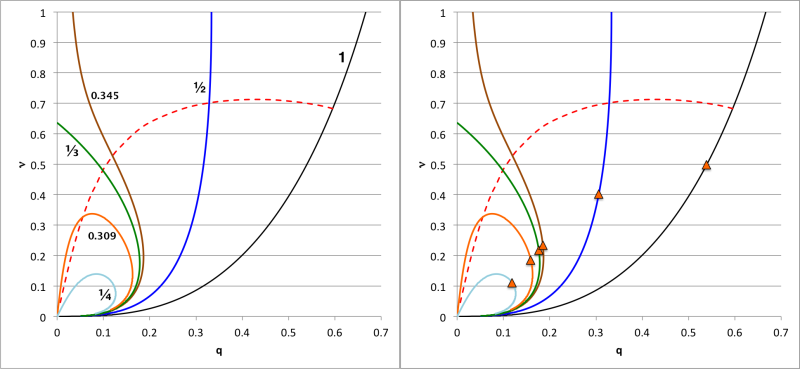

Figure 4

Eigenfunction Details

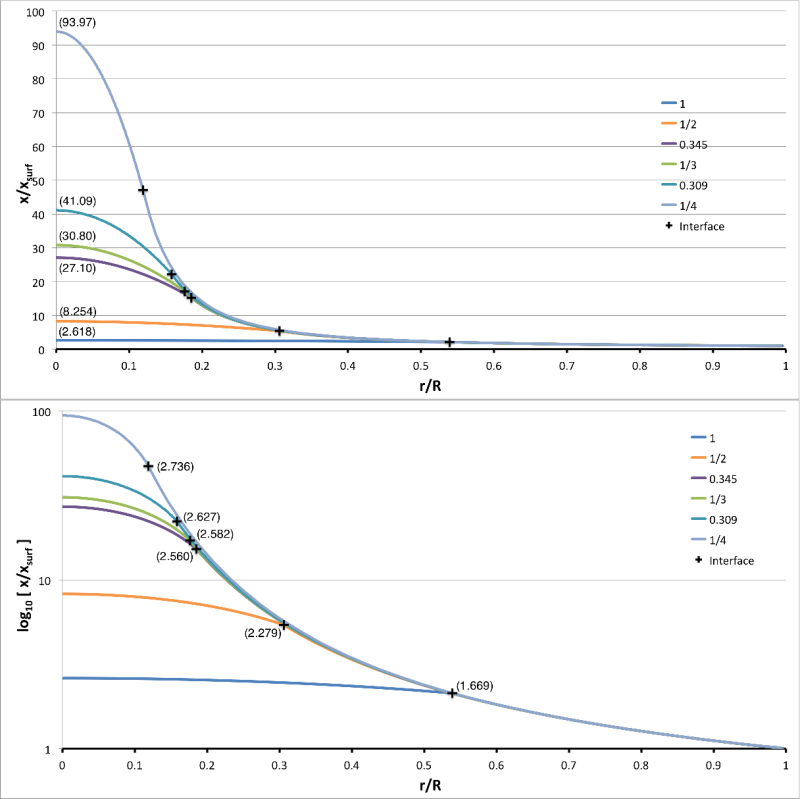

Here we examine some of the properties of the fundamental-mode eigenfunctions that we have found are associated with marginally unstable, $(n_c,n_e)=(5,1)$ bipolytropes.

Figure 5

Consider the model on the ${\mu }_e/{\mu }_c=1$ sequence for which ${\sigma }_c^2=0$; key properties of this specific equilibrium model are enumerated in the first row of numbers provided in Table 2, above. Figure 5 shows how our numerically derived, fundamental-mode eigenfunction, $x=\delta r/r_0$, varies with the fractional radius over the entire range, $0\le r/R\le 1$. By prescription, the eigenfunction has a value of unity and a slope of zero at the center $(r/R=0)$. Integrating the LAWE outward from the center, through the model's core (blue curve segment), $x$ drops smoothly to the value $x_i=0.81437$ at the interface $({\xi }_i=1.6686460157\Rightarrow q=r_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}/R_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}}=0.53885819)$. Our numerical integration of the LAWE showed that, at the interface, the logarithmic slope of the core (blue) segment of the eigenfunction is,

$\{\frac{d\ln x}{d\ln r}{|}_i{\}}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}=\{\frac{d\ln x}{d\ln \xi }{|}_i{\}}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$

$=$

$-0.455872.$

Next, following the above discussion of matching conditions at the interface, we determined that, from the perspective of the envelope, the slope of the eigenfunction at the interface must therefore be,

$\{\frac{d\ln x}{d\ln r}{|}_i{\}}_{\mathrm{e}\mathrm{n}\mathrm{v}}=\{\frac{d\ln x}{d\ln \eta }{|}_i{\}}_{\mathrm{e}\mathrm{n}\mathrm{v}}$

$=$

$3(\frac{{\gamma }_c}{{\gamma }_e}-1)+\frac{{\gamma }_c}{{\gamma }_e}\{\frac{d\ln x}{d\ln \xi }{|}_i{\}}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}=-1.47352.$

Adopting this "env" slope along with the amplitude, $x_i=0.81437$, as the appropriate interface boundary conditions, we integrated the LAWE from the interface to the surface, obtaining the green-colored segment of the eigenfunction that is shown in Figure 5. The amplitude continued to steadily decrease, reaching a value of $x_s=0.38203$, at the model's surface $(r/R=1)$. At the surface, this envelope (green) segment of the eigenfunction exhibits a logarithmic slope that matches to eight significant digits the value that is expected from astrophysical arguments for this marginally unstable $({\sigma }_c^2=0)$ model, namely,

$\frac{d\ln x}{d\ln \eta }{|}_s=\left[\right(\frac{{\rho }_c}{\overline{\rho }})\frac{{\xcancel{{\sigma }_c^2}}^0}{2{\gamma }_e}-(3-\frac{4}{{\gamma }_e}\left)\right]=-1.$

Key Reminder: We were able to find an eigenfunction whose surface boundary condition matched the desired value — in this particular case, a logarithmic slope of negative one — to this high level of precision only by iterating many times and, at each step, fine-tuning our choice of the equilibrium model's radial interface location, ${\xi }_i$ before performing a numerical integration of the LAWE.

The discontinuous jump that occurs in the slope of the eigenfunction at the interface results from our assumption that the effective adiabatic index of material in the core $({\gamma }_c=6/5)$ is different from the effective adiabatic index of the envelope material $({\gamma }_e=2)$. In an effort to emphasize and more clearly illustrate the behavior of this fundamental-mode eigenfunction as it crosses the core/envelope interface, we have added a pair of dashed line segments to the Figure 5 plot. The red-dashed line segment touches, and is tangent to, the blue segment of the eigenfunction at the location of the core/envelope interface; it has a slope,

$\frac{dx}{d(r/R)}{|}_i=\frac{x_i}{(r_i/R)}\{\frac{d\ln x}{d\ln r}{|}_i{\}}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$

$=$

$-0.455872\left(\frac{0.81437}{0.53885819}\right)=-0.68895.$

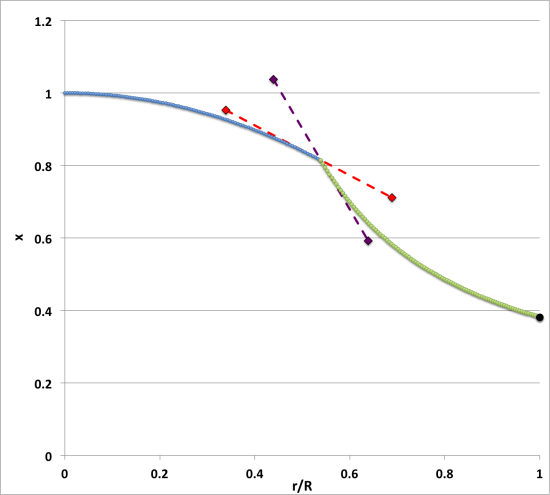

On the other hand, the purple-dashed line segment touches, and is tangent to, the green segment of the eigenfunction at the location of the core/envelope interface; it has a slope,

$\frac{dx}{d(r/R)}{|}_i=\frac{x_i}{(r_i/R)}\{\frac{d\ln x}{d\ln r}{|}_i{\}}_{\mathrm{e}\mathrm{n}\mathrm{v}}$

$=$

$-1.47352\left(\frac{0.81437}{0.53885819}\right)=-2.22691.$

For comparison purposes, the eigenfunction shown in Figure 5 has been presented again in Figure 6, along with several other of our numerically derived eigenfunctions, but in Figure 6 the plotted amplitude has been renormalized to give a surface value — rather than a central value — of unity.

In Figure 6 we show the behavior of the fundamental-mode eigenfunction for each of the marginally unstable models identified in Table 2. In the top figure panel, each curve shows — on a linear-linear plot — how the amplitude varies with radius; in the bottom figure panel, the amplitude is plotted on a logarithmic scale. On each curve, the black plus sign marks the radial location of the core-envelope interface; in the bottom panel, these markers are accompanied by the values of ${\xi }_i$ that are associated with each corresponding model (see also the second column of Table 2). Each eigenfunction has been normalized such that the surface amplitude is unity. In the top panel, the value of the central amplitude of the eigenfunction that results from this normalization is recorded near the point where each eigenfunction touches the vertical axis. (In each case, the value provided on the plot is simply the inverse of the value of $x_s$ given in Table 3, below.)

file = Dropbox/WorkFolder/Wiki edits/BiPolytrope/LinearPerturbation/FaulknerBipolytrope1.xlsx --- worksheet = Mode0Ensemble Figure 6: Eigenfunctions Associated with the Fundamental-Mode of Radial Oscillation in Marginally Unstable Models having Various ${\mu }_e/{\mu }_c$

Notice that, especially as they approach the surface, the "envelope" segments of these six marginally unstable eigenfunction appear to merge into the same curve, irrespective of their value of the ratio of mean molecular weights. Note as well that the discontinuous jump that occurs in the slope of each eigenfunction at the radial location of the core/envelope interface — resulting from our choice to adopt a different adiabatic index, ${\gamma }_g$, in the core from the one in the envelope — becomes less and less noticeable for smaller and smaller values of the ratio of mean molecular weights.

Is There an Analytic Expression for the Eigenfunction?

After noticing that, in Figure 6, the envelope segments of all of the marginally unstable eigenfunctions merge into the same curve, we began to wonder whether a single expression — and, even better, an analytically defined expression — would perfectly describe the eigenfunction. We had reason to believe that this might actually be possible because, in pressure-truncated polytropic configurations, we have derived analytic expressions for the marginally unstable, fundamental-mode eigenfunctions of both $n=5$ and $n=1$ systems.

Very quickly, we convinced ourselves that a parabolic function does indeed perfectly match the "core" segment of each displayed eigenfunction. Specifically, throughout the core $(0\le \xi \le {\xi }_i)$,

$x_P{|}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$	$\equiv$	$1-\frac{{\xi }^2}{15}$
$\Rightarrow \frac{d{x}_P}{d\xi }{|}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$	$\equiv$	$-\frac{2\xi }{15}$
$\Rightarrow \frac{d\ln x_P}{d\ln \xi }{|}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$	$\equiv$	$-\frac{2{\xi }^2}{15}[\frac{(15-{\xi }^2)}{15}{]}^{-1}=-\frac{2{\xi }^2}{(15-{\xi }^2)}.$

The envelope segment posed a much greater challenge. In the context of our discussion of Radial Oscillations of n = 1 Polytropic Spheres, and in an accompanying Ramblings Appendix chapter we have detailed some trial derivations that are mostly blind alleyways. Twice — once in January, 2019 and again (independently) in April 2019 — we have analytically demonstrated that the following appears to work for the envelope:

Given that the Structural Properties of the envelope are described by the Lane-Emden function,

$\varphi$	$=$	$a_0\left[\frac{\sin (\eta -b_0)}{\eta }\right]$
$\Rightarrow Q\equiv -\frac{d\ln \varphi }{d\ln \eta }$	$=$	$[1-\eta \cot (\eta -b_0)],$

the relevant LAWE is satisfied by the fractional displacement function,

$x_P$

$=$

$\frac{3c_{0}Q}{{\eta }^2},$

where, $c_0$ is an arbitrary scale factor.

Note that, $\frac{d{x}_P}{d\eta }$ $=$ $\frac{3c_0}{{\eta }^2}[\eta -\cot (\eta -b_0)+\eta {\cot }^{}(\eta -b_0)]-\frac{6c_{0}Q}{{\eta }^3}$ $\Rightarrow \frac{d\ln x_P}{d\ln \eta }=\frac{\eta }{x_P}\cdot \frac{d{x}_P}{d\eta }$ $=$ $\frac{{\eta }^3}{3c_{0}Q}\left\{\frac{3c_0}{{\eta }^2}\right[\eta -\cot (\eta -b_0)+\eta {\cot }^{}(\eta -b_0)]-\frac{6c_{0}Q}{{\eta }^3}\}$   $=$ $\frac{1}{Q}\left\{\right[{\eta }^2-\eta \cot (\eta -b_0)+{\eta }^2{\cot }^{}(\eta -b_0)]-2Q\}$   $=$ $\frac{1}{Q}[{\eta }^2-(1-Q)+(1-Q{)}^2]-2$   $=$ $\frac{1}{Q}[{\eta }^2-Q+Q^2]-2$   $=$ $\frac{{\eta }^2}{Q}+Q-3.$

But, as far as we have been able to determine (as of 16 April 2019), this analytic displacement function does not match the displacement function that has been generated through numerical integration of the LAWE (see the light-green segment of the eigenfunction displayed above in Figure 5). It remains unclear whether (a) the numerical integration is at fault, (b) we are imposing an incorrect slope at the core-envelope interface, or ( c) we are misinterpreting how to compare the two separately derived (one, numerical, and the other, analytic) envelope eigenfunctions.

Try Again (December 2025)

Don't assume the form of the displacement function throughout the envelope except: (a) Force a logarithmic slope of "minus one" at the surface; and (b) adopt a logarithmic slope at the interface that is consistent with the slope given by the core's analytic function.

${\rho }^{*}$ $\equiv$ $\frac{{\rho }_0}{{\rho }_c}$ ;     $r^{*}$ $\equiv$ $\frac{r_0}{[K_c^{1/2}/(G^{1/2}{\rho }_c^{2/5})]}$ $P^{*}$ $\equiv$ $\frac{P_0}{K_c{\rho }_c^{6/5}}$ ;     $M_r^{*}$ $\equiv$ $\frac{M_r}{[K_c^{3/2}/(G^{3/2}{\rho }_c^{1/5})]}$

$x_P{|}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$	$\equiv$	$x_0[1-\frac{{\xi }^2}{15}]$
$\Rightarrow \frac{d{x}_P}{d\xi }{|}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$	$\equiv$	$-x_0\left[\frac{2\xi }{15}\right]$
$\Rightarrow \frac{d\ln x_P}{d\ln \xi }{|}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$	$\equiv$	$-\frac{2{\xi }^2}{15}[\frac{(15-{\xi }^2)}{15}{]}^{-1}=-\frac{2{\xi }^2}{(15-{\xi }^2)}.$

From a numerical integration of the model for which ${\mu }_e/{\mu }_c=1$, we have found that, $[{\xi }_i=1.6686460157,x_i=+0.81437470]$, which is consistent with the parabolic expression if we set, $x_0=1$. Also, from the parabolic expression, we deduce that $[d\ln x/d\ln \xi {]}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}=-0.455872$, which matches the numerically determined logarithmic slope.

Also note:   From Table 2, above, we see that $R_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}}^{*}=2.139737$; and from a separate Table 1, $r_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}^{*}=(3/2\pi {)}^{1/2}{\xi }_i=1.153015$. This means that, $q\equiv r_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}^{*}/R_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}}^{*}=0.538858$.

Next, following the above discussion of matching conditions at the interface, we determined that, from the perspective of the envelope, the slope of the eigenfunction at the interface must therefore be,

$\{\frac{d\ln x}{d\ln r}{|}_i{\}}_{\mathrm{e}\mathrm{n}\mathrm{v}}=\{\frac{d\ln x}{d\ln \eta }{|}_i{\}}_{\mathrm{e}\mathrm{n}\mathrm{v}}$	$=$	$3(\frac{{\gamma }_c}{{\gamma }_e}-1)+\frac{{\gamma }_c}{{\gamma }_e}\{\frac{d\ln x}{d\ln \xi }{|}_i{\}}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$
	$=$	$3(\frac{3}{5}-1)+\frac{3}{5}\{-\frac{2{\xi }^2}{(15-{\xi }^2)}{\}}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$
	$=$	$-\frac{6}{5}+\frac{6}{5}[-\frac{{\xi }^2}{(15-{\xi }^2)}{\}}_{\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}$
	$=$	$-\frac{6}{5}[1+\frac{{\xi }^2}{(15-{\xi }^2)}]\}$
	$=$	$-\left[\frac{18}{(15-{\xi }^2)}\right]=-1.473523$    Yes!

Other Modes

MuRatio 1.0

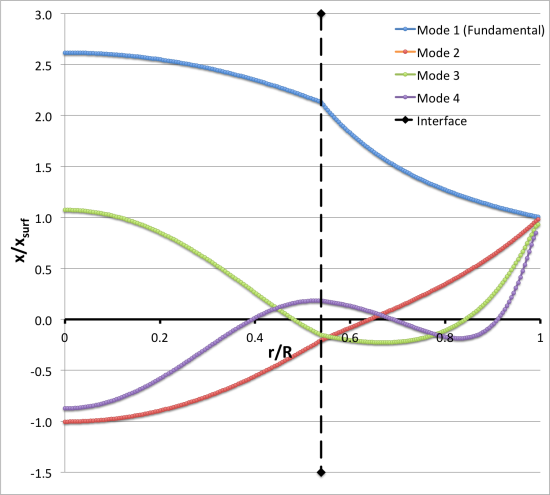

file = Dropbox/WorkFolder/Wiki edits/BiPolytrope/LinearPerturbation/FaulknerBipolytrope1.xlsx --- worksheet = mu100plot Our Determinations for Marginally Unstable Model Having ${\mu }_e/{\mu }_c=1$   $[{\xi }_i=1.6686460157]$
Mode	${\sigma }_c^2$	${\mathrm{\Omega }}^2\equiv \frac{{\sigma }_c^2}{2}\left(\frac{{\rho }_c}{\overline{\rho }}\right)$	$x_i$	$\frac{d\ln x}{d\ln r^{*}}{|}_i$		$x_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}}$	$\frac{d\ln x}{d\ln r^{*}}{|}_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}}$		$\frac{r}{R}{|}_1$	$1-\frac{M_r}{M_{\mathrm{t}\mathrm{o}\mathrm{t}}}{|}_1$	$\frac{r}{R}{|}_2$	$1-\frac{M_r}{M_{\mathrm{t}\mathrm{o}\mathrm{t}}}{|}_2$	$\frac{r}{R}{|}_3$	$1-\frac{M_r}{M_{\mathrm{t}\mathrm{o}\mathrm{t}}}{|}_3$
				core	env		expected	measured
1 (Fundamental)	0.00	0.00	+0.81437470	-0.455872	-1.473523	+0.3820	-1	-0.999999992	n/a	n/a	n/a	n/a	n/a	n/a
2	2.51513333	10.7107538	0.20482050	-7.09124	-5.4547441	- 0.9962	4.355376917	4.35537692	0.64133	0.3502	n/a	n/a	n/a	n/a
3	5.72371888	24.3745901	-0.14269277	+8.046019	+3.627611	+0.9308	11.18729505	11.18729506	0.4837	0.5864	0.842	0.0854	n/a	n/a
4	10.3458476	44.0622916	-0.20845197	-0.6949966	-1.61699793	-1.1443	21.03114578	21.03114577	0.3939	0.7154	0.6902	0.2777	0.9115	0.0284

MuRatio 0.310

file = Dropbox/WorkFolder/Wiki edits/BiPolytrope/TwoFirstOrderODEs/Bipolytrope51New.xlsx --- worksheet = Fun031FirstOvertone Variation of Oscillation Frequency with ${\xi }_i$ for ${\mu }_e/{\mu }_c=0.310$

${\xi }_i$ Fundamental (red) 1st Overtone (blue) ${\mathrm{\Omega }}^2$ ${\sigma }_c^2$ $\frac{{\rho }_c}{\overline{\rho }}$ ${\mathrm{\Omega }}^2\equiv \frac{{\sigma }_c^2}{2}\left(\frac{{\rho }_c}{\overline{\rho }}\right)$ 1.60 3.8944 0.498473 58.398587 14.555059 2.00 3.81053 0.236047 108.69129 12.828126 2.40 2.79491 0.0870005 199.16363 8.6636677 2.609509754 0.00000 0.048214 270.5922 6.5231608 3.00 - 13.287 0.0232907 468.15 5.4517612 3.50 - 44.63801 0.0117478 902.64028 5.3020065 4.00 - 98.215 0.0064276 1656.926 5.3250395 5.00 --- 0.0022154 4900.105 5.4278831 6.00 --- 0.0008785 12544.67 5.5100707 9.014959766 --- 9.61 × 10-5 116641.6 5.6036778 12.0 --- 1.86 × 10-5 6.01 × 10+5 5.5796084

See Also
